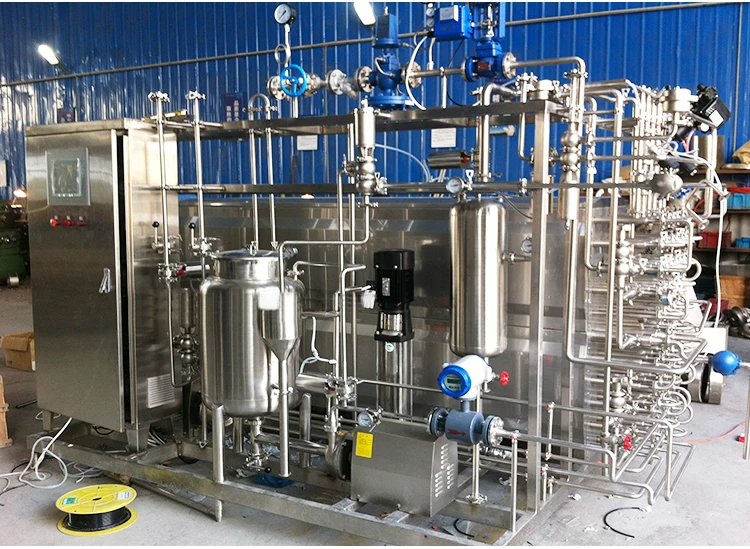

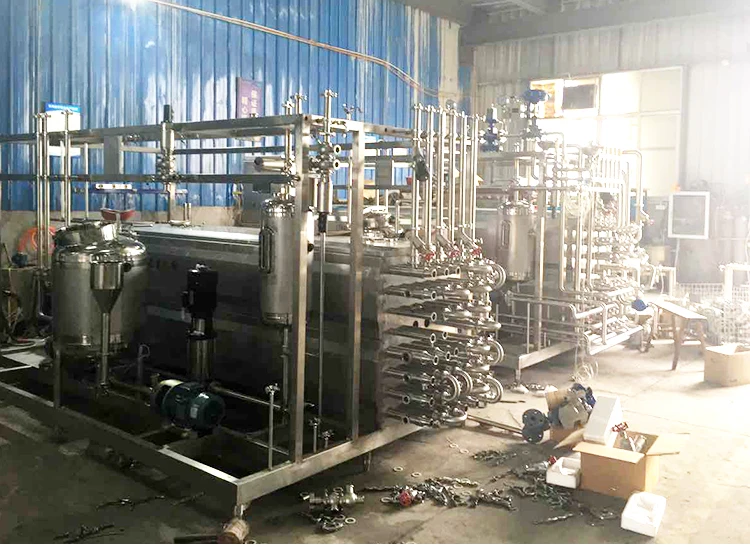

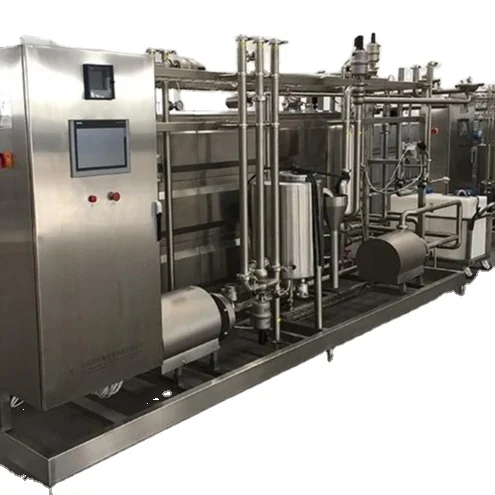

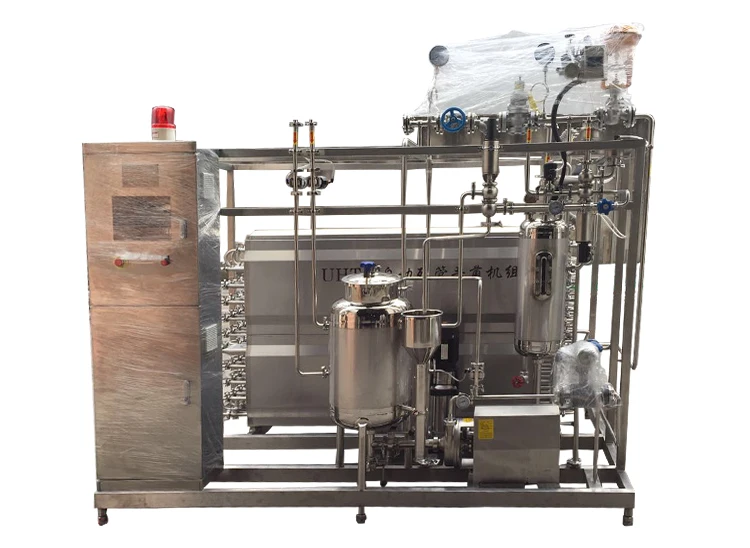

High Efficiency Stainless Steel Automatic Tubular Tomato Paste Pasteurizer/Sterilizer
Product Description
Specifications
1. Material : SUS304/316
2. Capacity/Flow: 1~20T/H
3. Motor power: 1.9-11KW
4. quick sterilizing for food fluid
|
Capacity (t/h) |
Steam Consumption (kg/h) |
Steam Pressure (bar) |
Power (kw) |
Dimension (L*W*H) |
Weight (kg) |
|
1 |
130 |
2.5 |
1.9 |
3.3×1.6×1.8 |
1490 |
|
2 |
260 |
2.5 |
2.1 |
3.3×1.6×1.8 |
1590 |
|
3 |
390 |
2.5 |
3.0 |
3.5×1.8×2.0 |
1630 |
|
4 |
520 |
2.5 |
3.0 |
3.5×1.8×2.0 |
1870 |
|
5 |
650 |
2.5 |
3.0 |
3.5×1.8×2.0 |
2060 |
|
6 |
780 |
2.5 |
3.0 |
3.5×1.8×2.0 |
2250 |
|
8 |
1040 |
2.5 |
3.7 |
4.5×2.0×2.0 |
2500 |
|
10 |
1300 |
2.5 |
5.2 |
4.5×2.0×2.0 |
2800 |
|
15 |
1950 |
2.5 |
7.0 |
6.5×2.0×2.2 |
3500 |
|
20 |
2600 |
2.5 |
11.0 |
6.5×2.0×2.2 |
4300 |
