High Quality Automatic Coil Type Fruit Juice Pasteurizer
Other recommendations
Overview

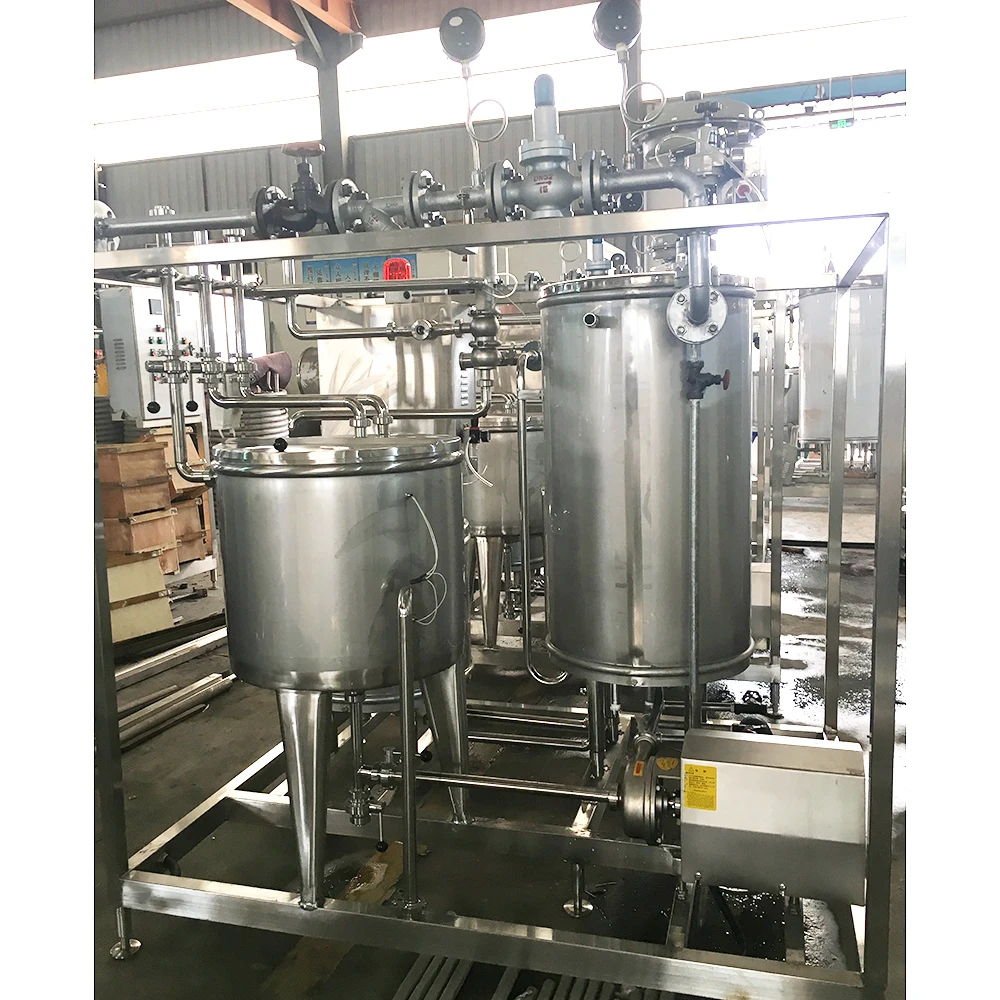

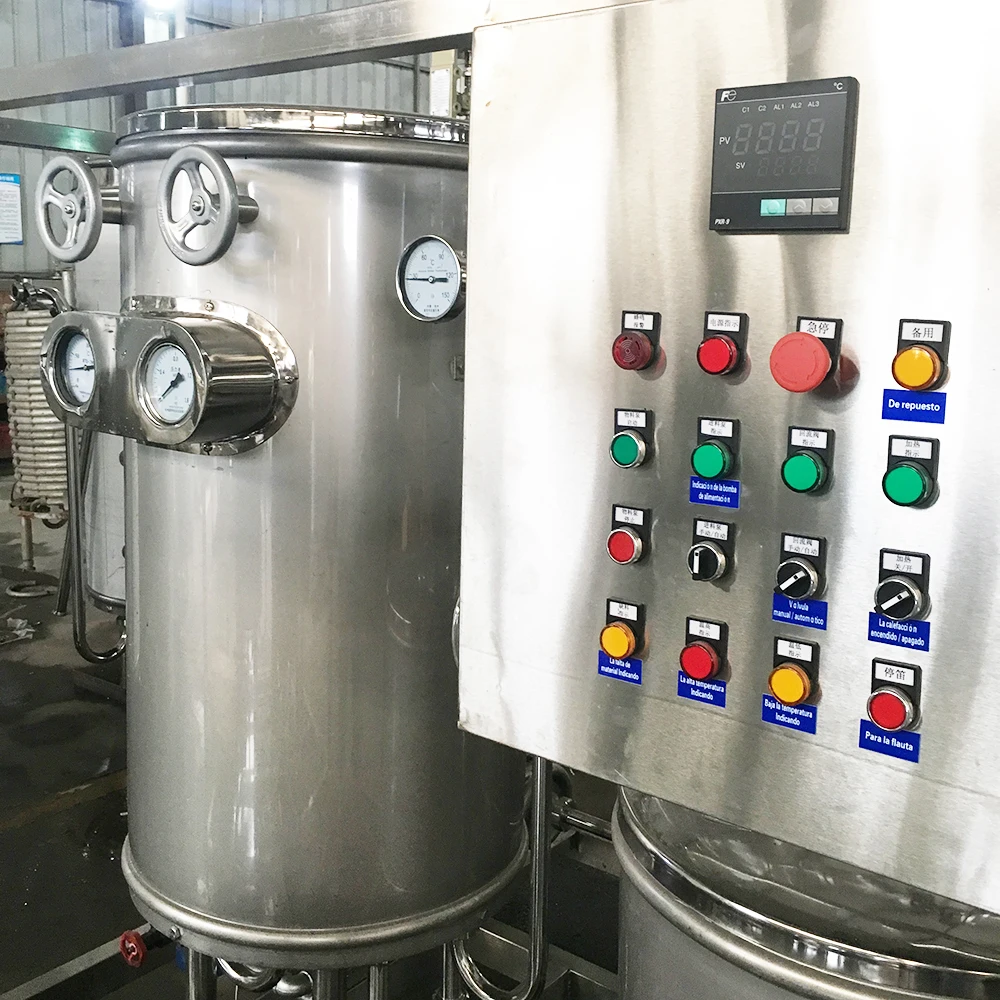

High Quality Automatic Coil Type Fruit Juice Pasteurizer
Specifications
1 International advanced level 2 High quality milk sterilizing machine 3 Favorable factory price 4 High reputation
Brief introduction
The High Quality Automatic Stainless Steel UHT Coil Type Juice Pasteurizer is applicable to high temperature instant sterilization of liquid materials such as milk,soy milk and fruit juice etc.It has such features as high efficiency,energy saving,simple operation and good sterilizing effect etc.
Technical Parameters
| Model name | UHT-1 | UHT-2 | UHT-4 | UHT-6 |
| Production capacity(kg/h) | 800-1000 | 1600-2000 | 3200-4000 | 4800-6000 |
| Sterilizing time(s) | 4-6S | 4-6S | 4-6S | 4-6S |
| Sterilizing temperature | 115~135 °C | 115~135°C | 115~135 °C | 115~135°C |
| Steam pressure(MPa) | <0.4 | <0.4 | <0.5 | <0.5 |
| Steam consumption(kg/l) | 0.15 | 0.15 | 0.15 | 0.15 |
| Material outlet temperature | 45-85 °C | 45-85 °C | 45-85 °C | 45-85 °C |
| Pump power(kw) | 1.5 | 2.2 | 4 | 5.5 |
|
Dimension(cm)
|
1314*925*1650
|
1500*1050*1800
|
1750*1350*2000
|
1400*1400*2000 |
| weight | 530KG | 550KG | 770KG | 950KG |
1. Q: How do I pay for my purchase order?
A: T/T, L/C at sight, Escrow, Paypal.
2. Q: What's the MOQ?
A: Our MOQ is 1 unit.
3. Q:What's the delivery time?
A: It will take about 25-35days to finish an order, but the exact time is according to actual situation.
4. Q: Can I have my own customized product?
A: Yes, your customized requirements for color, logo, design, mark, etc. are very welcome.
5. Q: Do you have quality control?
A: Yes, we attach great performance to quality control.
6. Q: How about the warranty control?
A: One year warranty for the machineries since sold. If quality problem occurs, please feel free to contact us.
