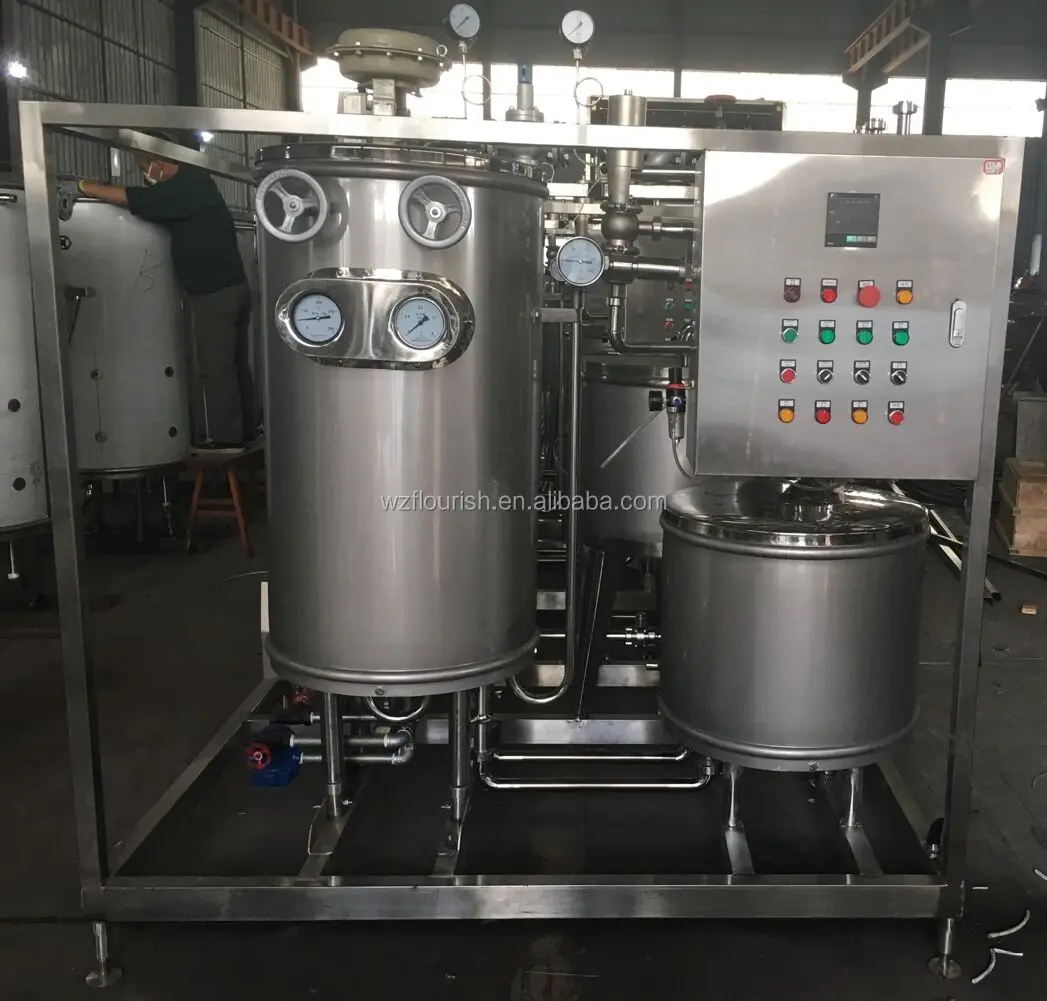

High Quality Automatic UHT Milk Plant
Product Description
Specifications
1 International advanced level 2 High quality milk sterilizing machine 3 Favorable factory price 4 High reputation
Brief introduction
The High Quality Automatic Stainless Steel UHT Coil Type Juice Pasteurizer is applicable to high temperature instant sterilization of liquid materials such as milk,soy milk and fruit juice etc.It has such features as high efficiency,energy saving,simple operation and good sterilizing effect etc.
Technical Parameters
| Model name | UHT-1 | UHT-2 | UHT-4 | UHT-6 |
| Production capacity(kg/h) | 800-1000 | 1600-2000 | 3200-4000 | 4800-6000 |
| Sterilizing time(s) | 4-6S | 4-6S | 4-6S | 4-6S |
| Sterilizing temperature | 115~135 °C | 115~135°C | 115~135 °C | 115~135°C |
| Steam pressure(MPa) | <0.4 | <0.4 | <0.5 | <0.5 |
| Steam consumption(kg/l) | 0.15 | 0.15 | 0.15 | 0.15 |
| Material outlet temperature | 45-85 °C | 45-85 °C | 45-85 °C | 45-85 °C |
| Pump power(kw) | 1.5 | 2.2 | 4 | 5.5 |
|
Dimension(cm)
|
1314*925*1650
|
1500*1050*1800
|
1750*1350*2000
|
1400*1400*2000 |
| weight | 530KG | 550KG | 770KG | 950KG |
