Stainless Steel Plate Type UHT Milk Sterilizer Machine

Customization

Customized logo

Min. order: 1

Customized packaging

Min. order: 1

Graphic customization

Min. order: 1

Overview

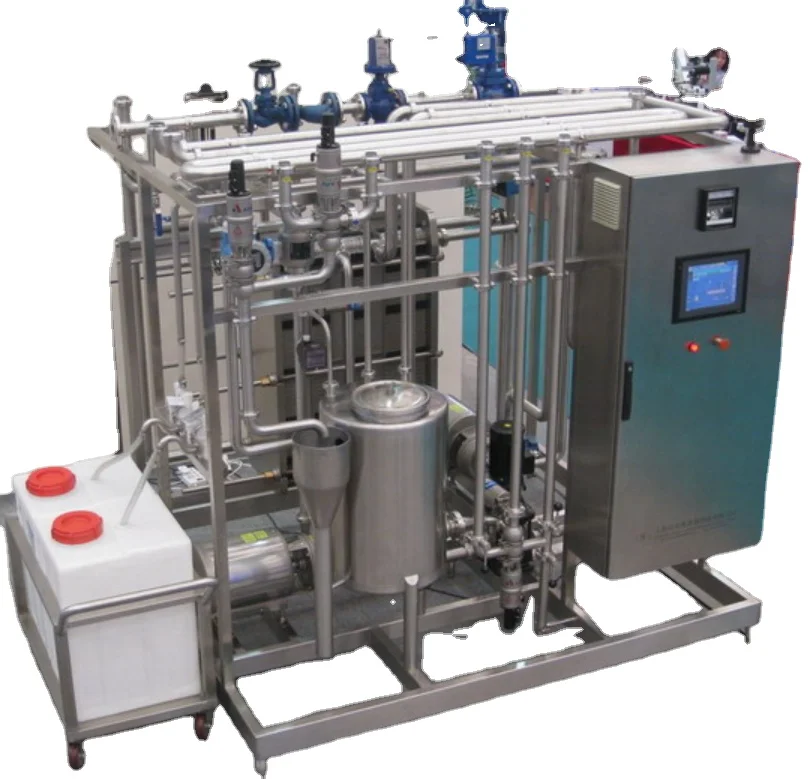

Stainless Steel Plate Type UHT Milk Sterilizer Machine

Product Description

Specifications

1 International advanced level 2 High quality milk sterilizing machine 3 Favorable factory price 4 High reputation



Brief introduction

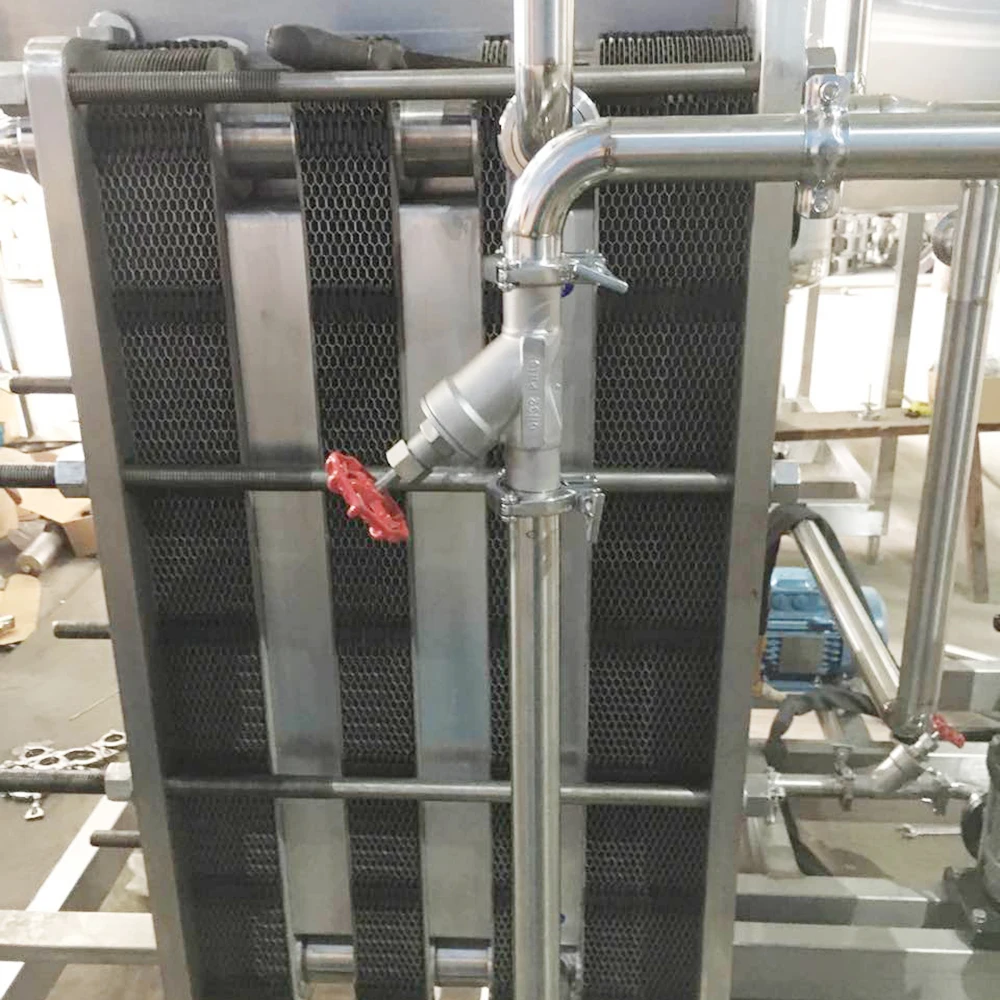

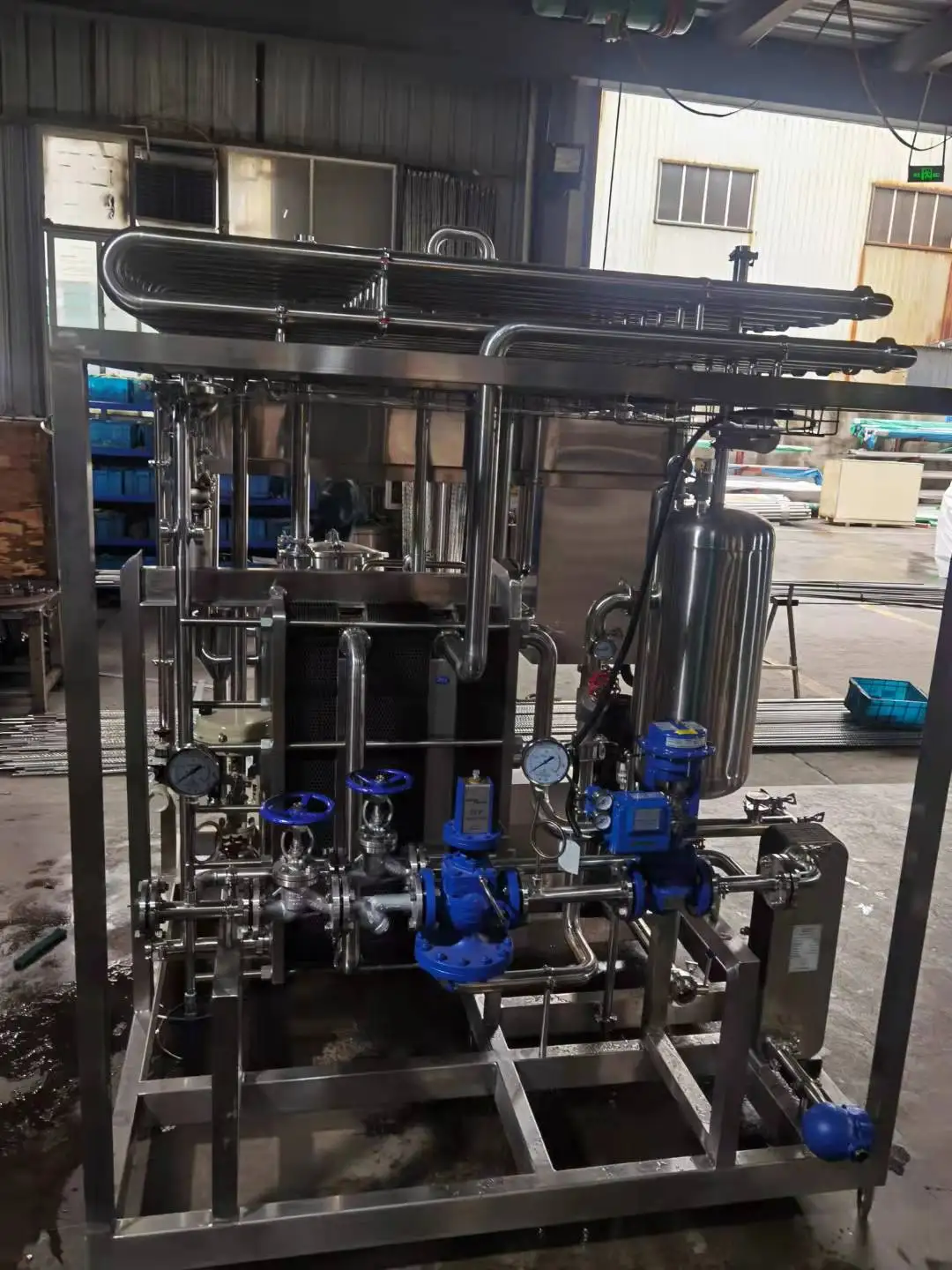

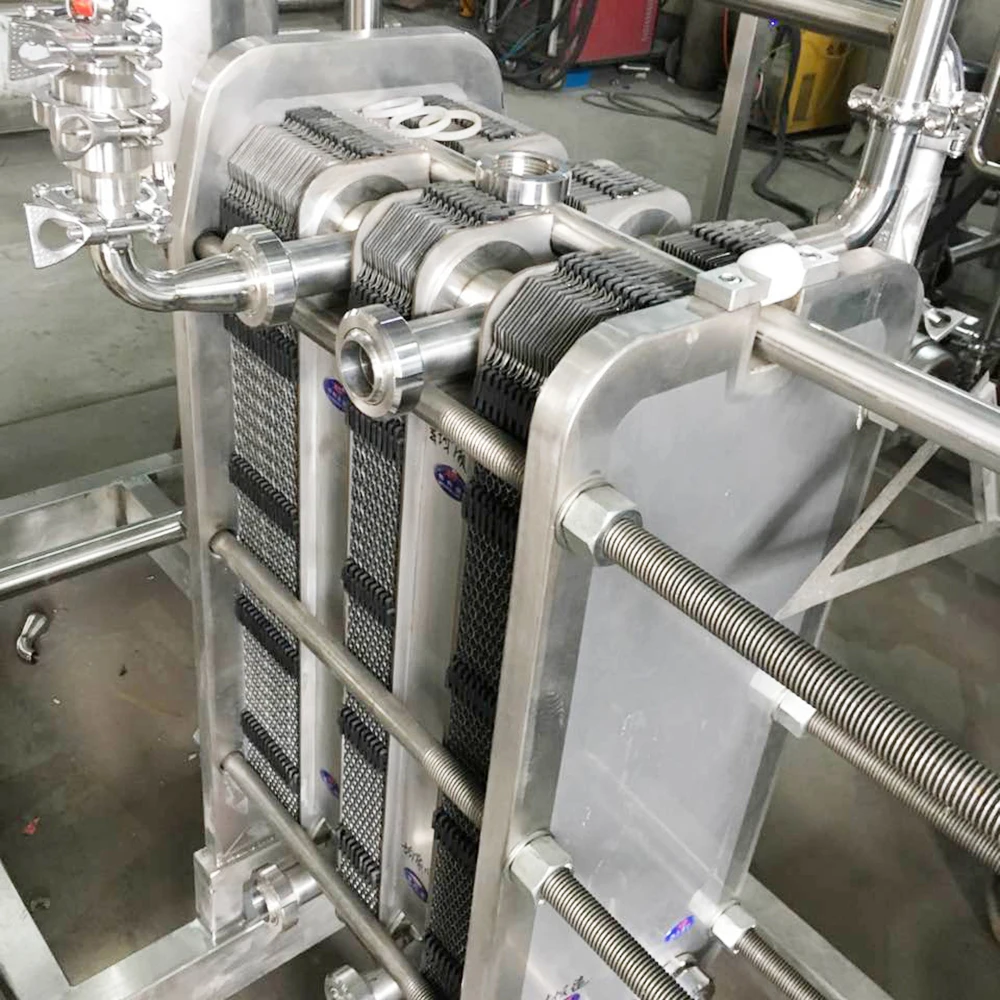

Plate pasteurizer is a kind of sterilization equipment specially designed for milk drinks or similar liquid materials. It's a ideal equipment to extend the shelf life of materials by sterilization and cooling. The heating, sterilization, heat preservation and cooling requirements designed according to different processes, different materials and different process combinations can meet the process requirements. With a variety of safety protection measures, high temperature, alarm and low temperature backflow. At the same time, according to the requirements of users, automatic control system can be configured.



Technical Parameters

Capacity

Heat exchange area(m2)

Power

(KW)

Dimension(mm)

Weight(kg)

0.5T/h

5

2.5

1800*1600*2200

700

1T/h

8

3

1800*1600*2200

800

2T/h

13

3.5

1850*1650*2200

1200

3T/h

20

4.5

2000*1800*2300

1500

4T/h

30

5.5

2000*1800*2300

1800

5T/h

45

7.5

2000*1800*2300

2100

10T

60

11

2250*1800*2400

3000
